Most buyers spend weeks comparing focal lengths and wavelength bands. But in our 13+ years of supplying LWIR lenses to thermal camera manufacturers, we have seen more field failures caused by two overlooked parameters than by any other reason: Back Focal Length (BFL) tolerance and optical format margin. These two specs determine whether a lens actually performs in your real-world conditions — or just looks good on a datasheet. This guide puts those two parameters where they belong: at the center of your selection process.
How to Choose the Right Infrared Lens?
Most buyers make this decision based on three obvious factors: wavelength, focal length, and price. Those matter. But they are not the whole story. In fact, the most common reason a thermal camera fails in the field is not the detector — it is a lens mismatch that was invisible during purchasing. A lens with the right focal length and the right wavelength can still produce blurry corners, temperature-induced focus drift, or detector damage from over-illumination if its BFL tolerance and optical format margin are wrong. Here is how to avoid that.
What Is the Most Important Parameter in an Infrared Lens?
The honest answer is: it depends on your application. But if we had to name the two specs that are most often ignored and most frequently responsible for field failures, they are:
1. Back Focal Length (BFL) Tolerance
BFL is the distance from the lens mounting flange to the detector focal plane. Every detector module has a maximum allowable BFL window — typically ±0.1mm to ±0.2mm depending on the brand. If the lens BFL sits outside that window, the image will be out of focus at the optimal working distance, no matter how perfect the optics are on paper.

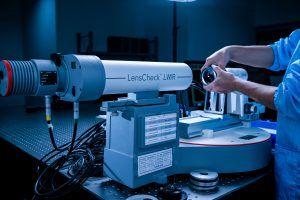

What to check: Ask the supplier for the measured BFL value, not just the nominal value. A quality lens ships with a BFL certificate showing measured vs. nominal, with a tolerance of ±0.05mm or tighter.
2. Optical Format Margin
The lens optical format (the area it can illuminate) must be larger than the detector active area. If the lens just barely covers the detector — with no margin — any misalignment during assembly will cause vignetting in the corners. We recommend a minimum 5–10% margin.
What to check: Confirm the lens covers the full detector format with at least 5% margin on each side.
What Is the Difference Between LWIR, MWIR, and SWIR?
This is where most buyers start — and it is the right place to start. The wavelength band determines what kind of thermal radiation the lens will capture, and therefore what it can see.
| Band | Wavelength | Best For | Cost Level |
|---|---|---|---|
| LWIR | 8–14 µm | Room-temperature objects, security, automotive, industrial | $ (uncooled) |
| MWIR | 3–5 µm | High-temperature targets, aerospace, defense | $$$ (usually cooled) |
| SWIR | 0.9–1.7 µm | Night vision, low-light, industrial sorting | $$ (varies) |
For most commercial applications — security monitoring, industrial inspection, automotive ADAS — LWIR is the standard choice. LWIR lenses work with uncooled detectors, which means lower cost, lower power consumption, and faster startup.
How Does Focal Length Affect Thermal Image Quality?
Focal length controls two things simultaneously: the field of view (FOV) and the detection range. These two objectives are in direct tension — you cannot maximize both.
Short focal length (wide angle, e.g., 9–13mm): Wide FOV, covers large areas. Best for: perimeter security, large-area surveys.
Medium focal length (e.g., 19–35mm): Balanced FOV and range. Best for: general security, parking lots, medium-distance detection.
Long focal length (narrow angle, e.g., 50–100mm+): Narrow FOV, long detection range. Best for: border patrol, highway monitoring, critical infrastructure.
The practical method for choosing focal length: calculate the ground resolution you need at your maximum working distance, then work backward to find the focal length. Formula: Ground Resolution = (Pixel Pitch × Working Distance) / Focal Length
Why Does Athermalization Matter?
A thermal camera installed outdoors experiences temperature swings of 30–40°C within a single day. A lens that is in focus at 20°C may be significantly out of focus at -10°C or +50°C. For any outdoor or automotive application, passive athermalization is not optional — it is a requirement.
What to check: Ask for the focus shift specification across the operating temperature range. A quality athermalized LWIR lens maintains focus within ±0.05mm over a -40°C to +60°C range.
What Other Parameters Do I Need to Check?
F-number (F/#): Lower F-number means better light-gathering ability. For LWIR, F/1.0 to F/1.4 is considered fast. Faster optics produce brighter, more sensitive thermal images.
Environmental sealing: For outdoor and marine applications, IP67 sealing on the front element is the minimum requirement.
AR coating band: Confirm the lens AR coating is optimized for your detector spectral band — not just "LWIR" in general.
What Mistakes Do Most Buyers Make?
Mistake 1: Buying based on price alone. A cheap lens saves $20–50 per unit. But if it fails in the field, your service cost, customer compensation, and reputation damage will cost far more.
Mistake 2: Ignoring BFL and optical format margin. These two specs are invisible until the camera is assembled, and then it is too late to change them without a full redesign.
Mistake 3: Assuming all LWIR lenses work the same. Two lenses can share the same focal length, F-number, and wavelength, and still produce significantly different image quality. Always request a sample evaluation before production orders.
Conclusion
Choosing the right infrared lens comes down to matching the right parameters to your actual application conditions — not just picking the right wavelength and focal length from a catalog. Pay close attention to BFL tolerance and optical format margin, insist on athermalization for outdoor use, and always request a sample evaluation before committing to a production order.
